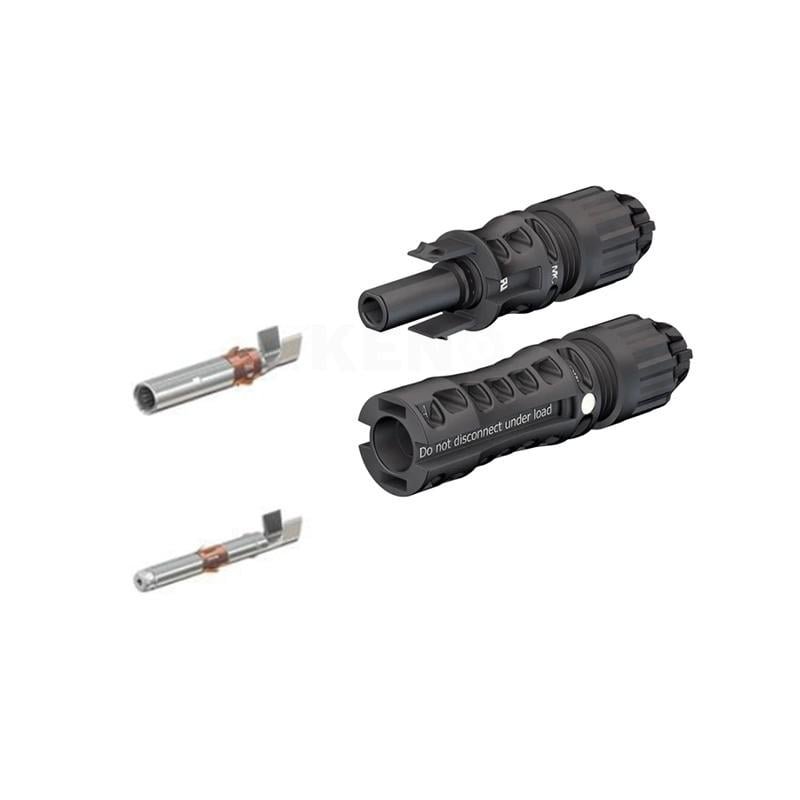

Stäubli MC4-Evo2 Connectors
The Staubli MC4-Evo2 is a widely used MC4 connector for most solar pv panels.
- Internationally certified with IEC, UL, JET, cTÜVus
- Approved for 1500 V DC (IEC, JET), 1000 V DC (UL) unrestricted access
- MULTILAM Technology, has proven the quality and durability several 100 million times since 2004
- Suited for all climatic environments thanks to resistance to UV, ammonia, salt-mist spray and high IP class (IP68)
- Standard MC4 tools can be used for crimping.
- A tool is needed to unlock the connection (PV-MS/MET)
- Rating 1000V 45A (4mm2 cable), 53A (6mm2 cable).
