trina tsm de09.05 solar panel 420w module mono b/w

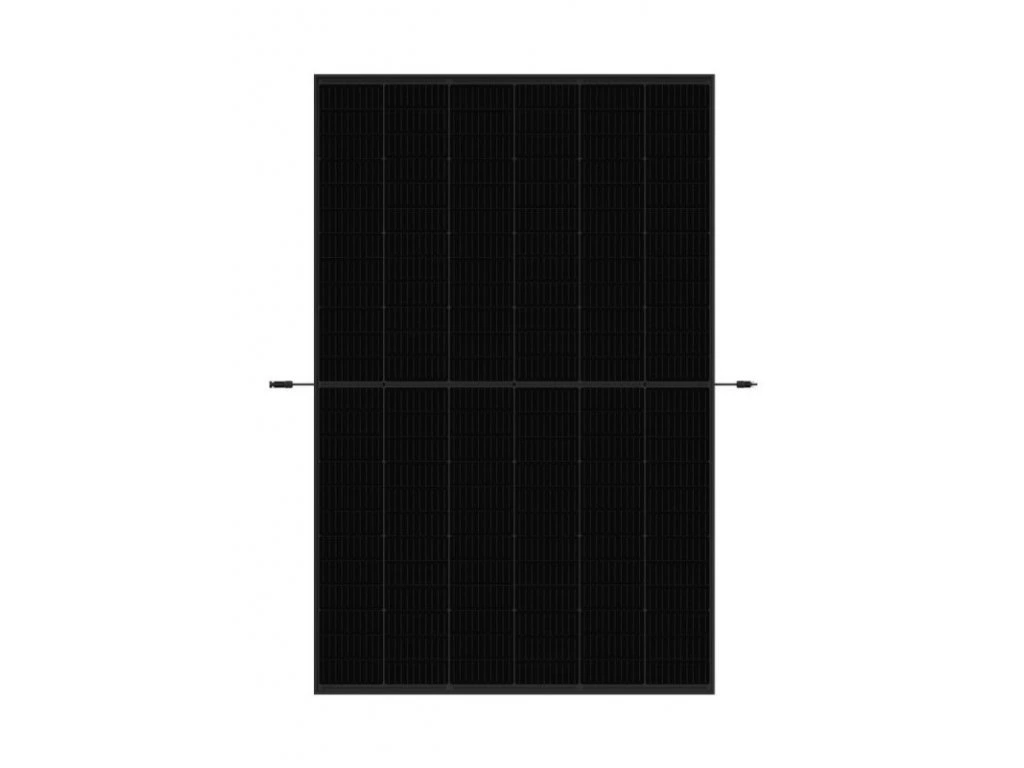

Trina TSM-DE09.05 Solar Panel 420W Module Mono B/W

£60.00

+ Free Shipping

Availability: 15 in stock

Category:

Specification

ELECTRICAL DATA

  • Peak power: 420W
  • Power tolerance: 0/+5
  • Max. power voltage: 42.0V
  • Max. power current: 10.01A
  • Open circuit voltage: 50.1V
  • Short circuit current: 10.58A
  • Module efficiency: 21.0%

MECHANICAL DATA

  • Solar cells: Monocrystalline
  • No. of cells: 144
  • Module dimensions: 1762 x 1134 x 30mm
  • Weight: 21.8kg
  • Glass: 3.2 mm, high transmission, AR coated heat strengthened glass

The Trina TSM-DE09.05 is a 420W monocrystalline solar module from the Vertex S range. Designed with aesthetics in mind, this solar panel boasts excellent colour control thanks to a dedicated cell blackening treatment and machine selection.

Panels in the Vertex S range offer ultra-high power with excellent efficiency. Based on Trina Solar’s superior multi-busbar technology, the Vertex S modules incorporate an innovative design that integrates 1/3 split cell, non-destructive cutting and high-density interconnect technologies.

Due to the dedicated design for residential and C&I applications, the new Vertex S series unlocks huge potential for further reducing balance-of-system costs.
